JONES X-RAY

Go Digital Today!

JONES X-RAY OFFERS THE BEST DIGITAL OPTIONS AVAILABLE
Upgrade Your New X-Ray System as well as Most Existing Equipment
Call Today • 972-647-0171



DR Digital X-Ray




direct-radiography2

Dr Digital Offers Many Advantages over conventional analog (film) x-ray. You will save money on film, chemistry & dark room maintenance. You will save the space a dark room takes up. You will save valuable time with each exposure AND you will reduce radiation exposure to your patients. There are many options for transitioning to a digital x ray solution. Many existing x-ray systems can be upgraded to make use of digital x ray, or you can just replace an entire room with a Direct Radiography (DR) system.


WE OFFER THE BEST DR DIGITAL PANELS:

Stacks Image 10695

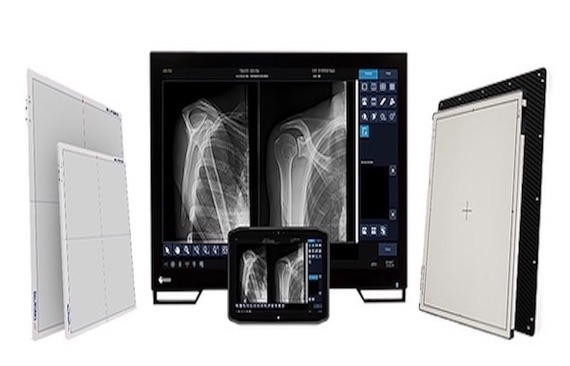

page0_3-3VIEWORKS DR DIGITAL

VIVIX DR Panels will fit any Practice in Diagnostic Imaging. If you want superior image quality, seamless installation, and cost effective way to retrofit your digital imaging needs, VIVIX is your DR Solution.

Stacks Image 10721

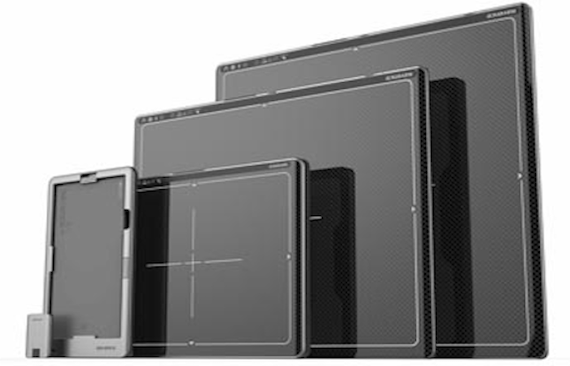

page0_3-3RAYENCE DR DIGITAL

The ergonomically designed C-Series Cesium Iodide and Gadolinium Oxysulfide wireless detectors offer new levels of handling, functionality and exceptional diagnostic image quality in any X-ray room

Stacks Image 10698

page0_3-3DELWORKS DR DIGITAL

DELWORKS is powerful image acquisition and processing software featuring a user-friendly interface that provides sophisticated and speedy medical imaging. DELWORKS makes the difficult decisions for you.

Stacks Image 10532

NEED A REFERRAL OR TWO, OR MORE…?

We have had them for years and are so happy with all of the services! We recently moved and they helped us with all the install, designing the room layout, and followed up with us multiple times after just to make sure we had no issues. We wouldn't go anywhere else for our x-ray needs!
Christy Jenkins - 8/26/2020
Jones X-Ray is amazing!! They were able to help us coordinate a move in less than 3 weeks. Chuck and Gabe are very courteous and efficient. I would definitely recommend everyone use them for moving or installing new or used equipment. Very professional from start to finish.
Stevie Nussbaum - 6 hours ago
Jones X-Ray is our go to X-Ray company for service and sales. They have provided us with same day service on numerous occasions. Everyone is very pleasant to work with. I highly recommend Jones X-Ray!!
Jennifer Beck
After install support has been fantastic. Jones x-ray is local and just a phone call away…
Sunil Mahbubani, Managing Partner The ER at Craig Ranch
I've been using Jones X-ray for my servicing and supply needs for many years, including a move (which included moving an entire system) to another location. Great service!
Cyrus Laali 2 days ago
A big THANK YOU to Jones X-ray! I bought my first x-ray system back in 1997 from Jones X-Ray. We just changed to our new DR Digital system purchased from JXR. They have been professional and trustworthy. I know that when I hear from any of the crew they will give me an honest answer.
Avery Koenig 2/2019
Jones X-Ray has been taking care of my X-Ray equipment for a long time and I'm nothing but happy. Professional people, great service and excellent equipment describe Jim Jones and his company! I will continue to use Jones X-Ray for years to come.
Kenneth Riddle a year ago
Jones X-Ray is amazing!! They were able to help us coordinate a move in less than 3 weeks. Chuck and Gabe are very courteous and efficient. I would definitely recommend everyone use them for moving or installing new or used equipment. Very professional from start to finish.
Stevie Nussbaum - 7/20/2020
Jim guided us through the purchase and acquisition of a used digital x-ray unit from a 3rd party seller. Jones picked up the unit from the seller and installed it properly and made sure all the regulatory issues were handled. They showed up when they said they would, charged me what they quoted, and made the whole thing very easy. I highly recommend them.
Andy Mott - 10/15/2020

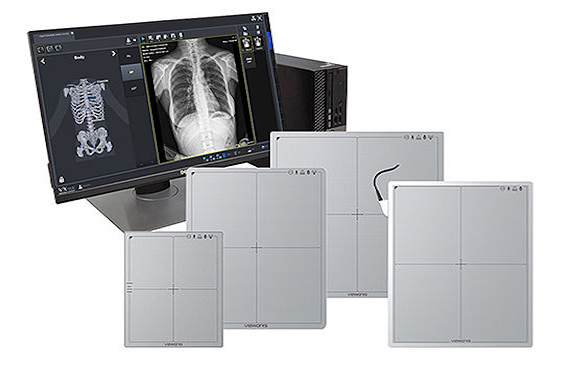

FEATURED PRODUCT: VIEWWORKS DR - DIGITAL PANELS:

VieWorks_logo
DR Digital Radiography Panels

Affordable DR Panels that are perfect for new installations or retrofit applications.
We offer a wide variety of detector options AND…
They are Built to Last…


Vieworks DR Panel Introduction:

- THE NEXT STEP -
MOVING FROM CR TO DR

  • THE PRACTICAL PERSPECTIVE - 11/21

    MOVING FROM CR TO DR - THE NEXT DIGITAL STEP…

    crtodr-sm

    Before deciding to make the switch from CR to DR, it is important to understand what the differences between the technologies mean to you and your practice. Rather than taking pages and pages answering this question from a technical approach, let’s look at what it means practically.

  • READ MORE

    MOVING FROM CR TO DR - THE NEXT DIGITAL STEP…

    Before deciding to make the switch from CR to DR, it is important to understand what the differences between the technologies mean to you and your practice. Rather than taking pages and pages answering this question from a technical approach, let’s look at what it means practically.

    CR-DR-BIG

    The most valuable resource
    Let’s explore how DR can save your department one of its most precious assets: Time.

    If you currently are working with CR in your department, you have probably worn out a few pairs of shoes with the amount of steps you’ve taken between the bucky and the processor; and you’ve probably become better at shuffling cassettes than a blackjack dealer shuffling cards.

    This is where the first advantage of DR comes in. Rather than swapping cassettes between the bucky and the processor, the image transfers electronically and automatically to the workstation once the x-ray is taken. That’s right, you can just leave the cassette right where it is until the exam is done or you need to move the cassette for another view.

    Flexibility and portability
    The next advantage brings us to your portable x-ray unit. Traditionally, with both film and CR, you didn’t know what your x-ray looked like until you got back to your department. With DR, because your workstation goes with you, there is immediate knowledge on your positioning and technique.

    This is also helpful for those bedside interpretations by physicians, say, in the ICU when they are checking for placement of a line or intubation, the image is visible in seconds, as opposed to waiting for the film to be processed and sent to your PACS for them to see.

    Additionally, if a positioning change is needed, a small adjustment can be made and the image may be repeated, rather than the long walk of shame back to the patient’s room where the entire exam must begin again.

    Lowering radiation dose and achieving higher image quality
    Outside of the time savings to the department and the staff, there is also an arguably more important savings happening with DR when compared to CR, and that is radiation dose.

    Two mainstream DR panel technologies exist today, which are CsI (Cesium Iodide) and Gadox (Gadolinium Oxysulfide). Between the two, CsI requires less radiation to get an equivalent image when compared with Gadox. Depending on which type of DR panel, dose reduction can be as much as 2 to 3 times when compared to CR. Not only are CsI detectors capable of lower dose requirements, they also have the potential for the highest image quality, which will make reads faster and more accurate.

    While the CsI detector is a major part of this equation, the software of the vendor you choose has great influence on the final image, as well.

    The investment mindset
    So, is there any reason not to switch to DR? That comes down to really one thing: upfront cost.

    While cost is always a concern, it is important to consider upgrading to DR as an investment. As mentioned earlier, saved time can directly translate into money saved, usually due to the ability to perform a greater number of exams each day.

    There is also the cost of maintaining CR cassettes to consider. Because the processor disassembles and reassembles CR cassettes with each use, this results in inevitable--and not insignificant--wear and tear. Remember, the DR panel requires no manual processing.

    Avoid reimbursement reduction
    Finally, there is the upcoming Medicare reimbursement reduction slated to begin in this year for facilities that have not made the switch to DR.

    As part of an initiative to encourage U.S. healthcare providers to adopt DR, Medicare began reducing payments for analog x-ray exams in 2017. This year, even sites using CR will begin to see reimbursement fall—first by seven percent for five years, and then by ten percent.

    Changing from CR to DR is a decision every radiology department must consider, eventually, if they haven’t already. At a certain level, the question isn’t as much if, but when, and understanding the differences between CR and DR and even amongst differing DR systems is vital.

Stacks Image 10589
Stacks Image 10496
Did You Know… Digital Radiography is a form of x-ray imaging, where digital X-Ray sensors are used instead of traditional photographic film. Advantages include time efficiency through bypassing chemical processing and the ability to digitally transfer and enhance images. Also less radiation can be used to produce an image of similar contrast to conventional radiography. Digital Radiography (DR) or (DX) is essentially film-less X-ray image capture. In place of X-ray film, a digital image capture device is used to record the X-ray image and make it available as a digital file that can be presented for interpretation and saved as part of the patient’s medical record. The advantages of DR over film include immediate image preview and availability, a wider dynamic range which makes it more forgiving for over- and under-exposure as well as the ability to apply special image processing techniques that enhance overall display of the image. The largest motivator for healthcare facilities to adopt DR is its potential to reduce costs associated with processing, managing and storing films. Typically there are two variants of digital image capture devices. These devices include Flat Panel detectors (FPDs), and High Density Line Scan Solid State detectors.
