JONES X-RAY OFFERS THE BEST DIGITAL OPTIONS AVAILABLE!
Call Today • 972-647-0171



Urgent Care X-Ray Equipment



images INSTALLATION SPOTLIGHT images-2
headerumglogo
page0_3-3MEDICAL DIGITAL X-RAY SYSTEM
RECENTLY INSTALLED BY JONES X-RAY
- FORT WORTH, TEXAS -

Stacks Image 12181
Stacks Image 12183
Stacks Image 12185

WE WILL NEVER GET TIRED OF HEARING CUSTOMER COMMENTS LIKE THIS!

⭐️⭐️⭐️⭐️⭐️ We have had them for years and are so happy with all of the services! We recently moved and they helped us with all the install, designing the room layout, and followed up with us multiple times after just to make sure we had no issues. We wouldn't go anywhere else for our x-ray needs!
Christy Jenkins - 8/26/2020
⭐️⭐️⭐️⭐️⭐️ Jones X-Ray is amazing!! They were able to help us coordinate a move in less than 3 weeks. Chuck and Gabe are very courteous and efficient. I would definitely recommend everyone use them for moving or installing new or used equipment. Very professional from start to finish.
Stevie Nussbaum - 6 hours ago
⭐️⭐️⭐️⭐️⭐️ Jones X-Ray is our go to X-Ray company for service and sales. They have provided us with same day service on numerous occasions. Everyone is very pleasant to work with. I highly recommend Jones X-Ray!!
Jennifer Beck
⭐️⭐️⭐️⭐️⭐️ After install support has been fantastic. Jones x-ray is local and just a phone call away…
Sunil Mahbubani, Managing Partner The ER at Craig Ranch
⭐️⭐️⭐️⭐️⭐️ I've been using Jones X-ray for my servicing and supply needs for many years, including a move (which included moving an entire system) to another location. Great service!
Cyrus Laali 2 days ago
⭐️⭐️⭐️⭐️⭐️ A big THANK YOU to Jones X-ray! I bought my first x-ray system back in 1997 from Jones X-Ray. We just changed to our new DR Digital system purchased from JXR. They have been professional and trustworthy. I know that when I hear from any of the crew they will give me an honest answer.
Avery Koenig 2/2019
⭐️⭐️⭐️⭐️⭐️ Jones X-Ray has been taking care of my X-Ray equipment for a long time and I'm nothing but happy. Professional people, great service and excellent equipment describe Jim Jones and his company! I will continue to use Jones X-Ray for years to come.
Kenneth Riddle a year ago
⭐️⭐️⭐️⭐️⭐️ Jones X-Ray is amazing!! They were able to help us coordinate a move in less than 3 weeks. Chuck and Gabe are very courteous and efficient. I would definitely recommend everyone use them for moving or installing new or used equipment. Very professional from start to finish.
Stevie Nussbaum - 7/20/2020
⭐️⭐️⭐️⭐️⭐️ Jim guided us through the purchase and acquisition of a used digital x-ray unit from a 3rd party seller. Jones picked up the unit from the seller and installed it properly and made sure all the regulatory issues were handled. They showed up when they said they would, charged me what they quoted, and made the whole thing very easy. I highly recommend them.
Andy Mott - 10/15/2020

FEATURED PRODUCT: RADMEDIX | COMPACT U-ARM

Stacks Image 12370
page0_3-3RADMEDIX ACUITY UDR U-ARM
ADVANCED FULLY AUTOMATIC SOLUTION


Perfect for Any Clinical Application.
Medical, Orthopedic, Urgent Care, and more.


Our Acuity UDR U-Arm Solution with a Minimal Footprint…

Radmedix has introduced its compact advanced u-arm x-ray system which features faster radiography imaging through motorized fully automatic positioning. This allows the system to be moved into an exact position per the exam selection through our intuitive touchscreen display console or by the included handheld wireless remote control. No longer spend unnecessary time manually moving the system, just select one of your pre-programmed positions and you’re ready to go.

Our Acuity UDR U-Arm Solution with a Minimal Footprint…
Perfect For Most Every Medical Modality!

LEARN MORE


headerumglogo
Jones X-Ray has been Serving DFW for over 40 years!
Del Medical has been Serving the Medical community for over 85 years!
“Over A Century of Knowledge Working for You"


DEL MEDICAL | INTRODUCTION

Stacks Image 11302

DEL MEDICAL | URGENT CARE | OVERHEAD SYSTEMS

page0_3-3OTC18S OFFICIAL RELEACE

Stacks Image 12301

Premium overhead tube crane system with vertical tracking!
LEARN
MORE

Stacks Image 11771
page0_3-3OTC18T
Premium overhead tube crane system with vertical tracking

Stacks Image 11774
page0_3-3OTC18M
Premium overhead tube crane system with LCD touchscreen


SEE THE DEL MEDICAL OTC18 SERIES IN ACTION


DEL MEDICAL | URGENT CARE | FLOOR MOUNT SYSTEMS

Stacks Image 12289
page0_3-3FMT18T
Premium floor mounted system with vertical tracking

Stacks Image 12285
page0_3-3FMT18M
Premium floor mounted system, LCD touchscreen


SEE THE DEL MEDICAL FMT18 SERIES IN ACTION


DEL MEDICAL FMT AND FWFC RADIOGRAPHIC SYSTEMS

Stacks Image 12234
page0_3-3FMT
Low profile floor-mounted system with digital SID and angulation display

Stacks Image 12230
page0_3-3FWFC
Compact and affordable floor-to-wall, floor-to-ceiling mounted system


SEE THE DEL MEDICAL FMT AND FWFC SERIES IN ACTION


GENORAY C ARM X-RAY SYSTEM

Genoray_logo
page0_3-3GENORAY OSCAR Classic C-Arm X-Ray System
oscar-classic-car-03

Powerful, Light and Versatile Performance with a Minimal Footprint…

The GENORAY OSCAR Classic is an economic version with selectable 9 inch and 12 inch image intensifier

The OSCAR Classic is designed to provide fluoroscopic and spot film images of the patient during diagnostic, surgical and interventional procedures.

Examples of clinical applications may include: orthopedic, critical care, endoscopy, cholangiography, urology, and vascular studies.

The 10.4 inch touch LCD monitor with preview function enables the operator to perform a seamless operation, which makes this system very unique and differentiates itself on the price point of mobile C-Arms. An operator has no need to go back and forth between a C-Arm and a work station while taking images and doing surgical procedures because the OSCAR Classic helps the operator control the system with only the C-Arm side.

BROCHURE:

iconpdf GENORAY Oscar Classic C-Arm Brochure

LEARN MORE


MEDLINK | URGENT CARE | COMPACT STRAIT ARM

Stacks Image 12322

2019-Color.-Medlink-with-Vieworks_576w
page0_3-3MEDLINK URS Straight Arm

MEDLINK IMAGING URS Strait Arm Advanced Digital X-ray Capabilities with a Minimal Footprint…
  • Ideal for facilities with a limited amounts of space - Less than 7 feet tall, the system comfortably fits into rooms with 8’ ceilings
  • Floor-to-wall column with rotating arm and variable height center
  • Counter-balanced unit that can be smoothly positioned.
  • Patients can be exposed in standing, sitting, and lying down positions.
  • 40kW High Frequency X-ray Generator
  • Easy-to-Install Design
  • Single-column design allows for simplified installations (1-1.5 days).
  • Includes the VIVIX 1717V Fixed Flat Panel Detector and Customized Workstation
  • Pre-loaded with the award-winning VXvue imaging software.
Unit Includes a (5) Year Manufacturer Warranty on System, DR Panel, and Workstation


LEARN
MORE

images INSTALLATION SPOTLIGHT images-2

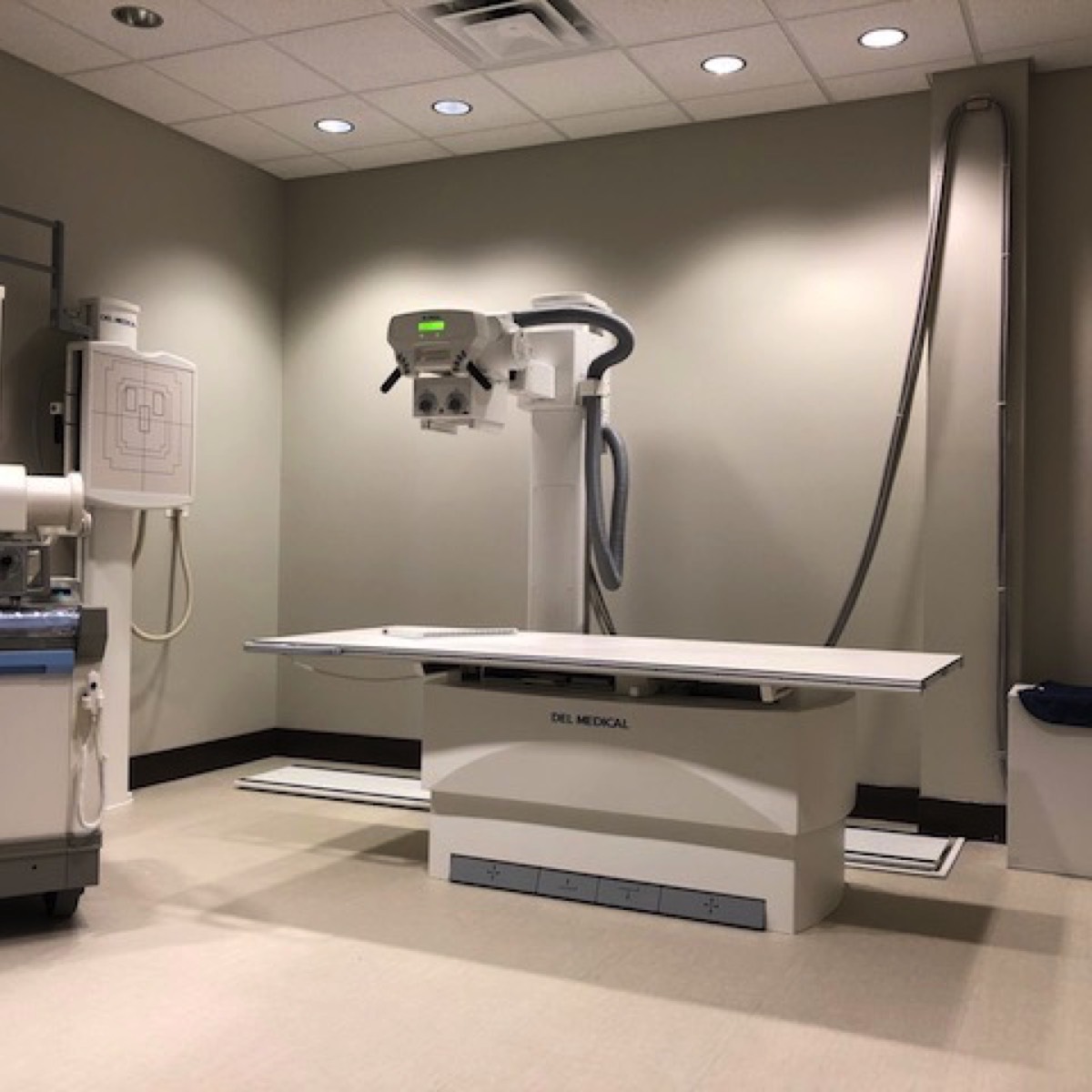

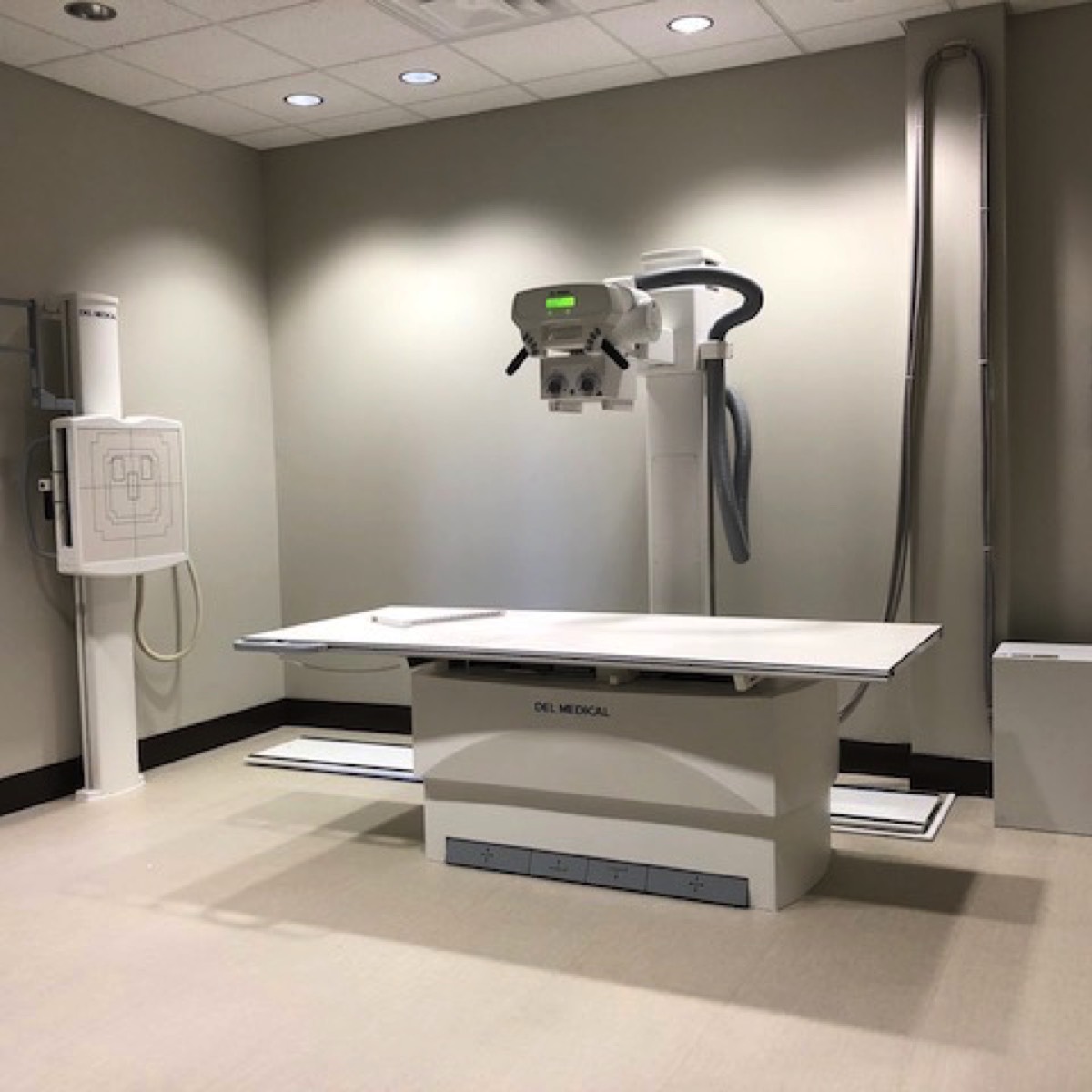

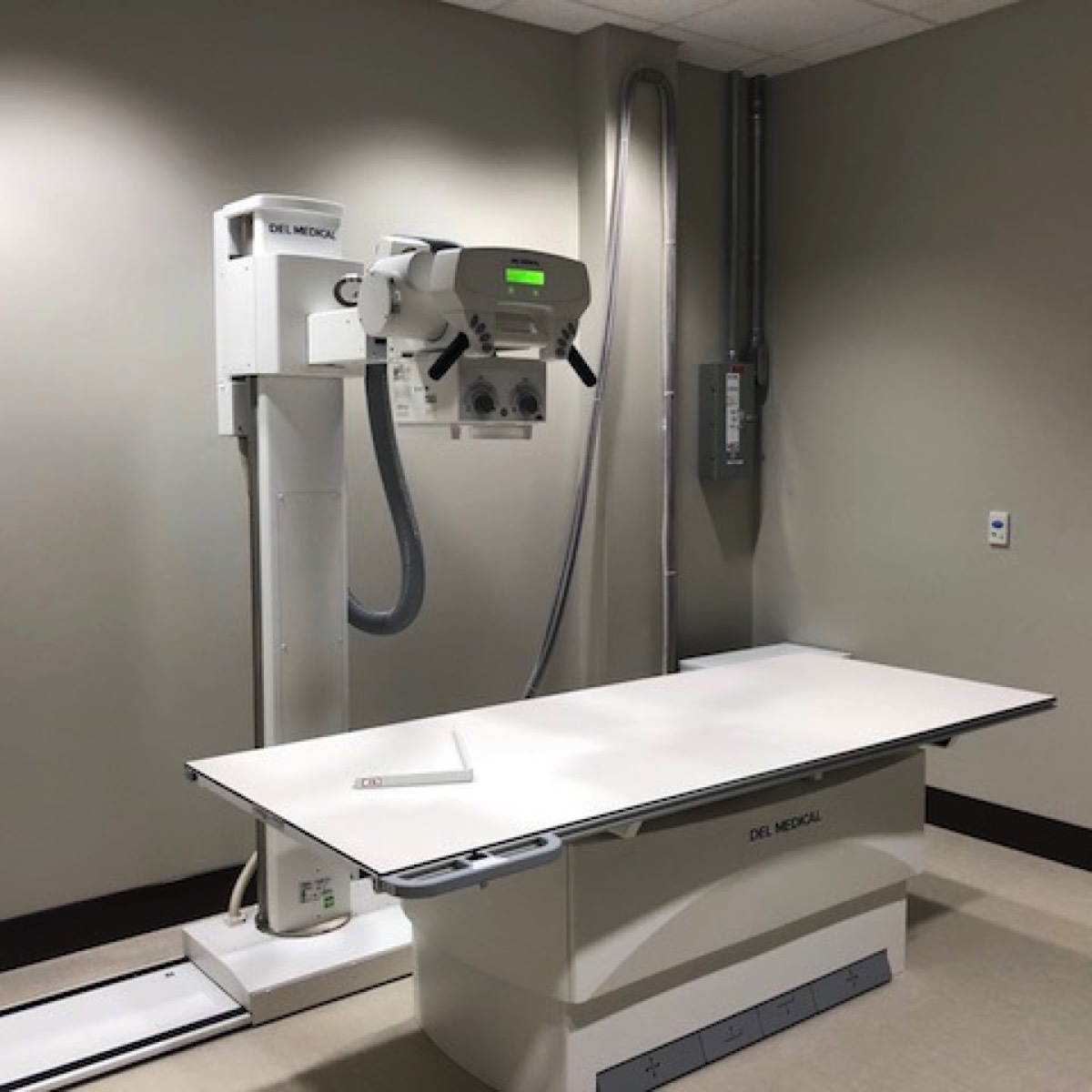

RECENTLY INTALLED DIGITAL X-RAY SYSTEM!
headerumglogo
page0_3-3MEDICAL DFMTPS DR SYSTEM - DALLAS, TEXAS

Stacks Image 12129
Stacks Image 12131
Stacks Image 12133
Stacks Image 12135

DIGITAL RADIOGRAPHY INFORMATION:


direct-radiography2

DR Digital offers many advantages over conventional analog (film) x-ray. You will save money on film, chemistry & dark room maintenance. You will save the space a dark room takes up. You will save valuable time with each exposure AND you will reduce radiation exposure to your patients. There are many options for transitioning to a digital x ray solution. Many existing x-ray systems can be upgraded to make use of digital x ray, or you can just replace an entire room with a Direct Radiography (DR) system.

TYPES OF DIGITAL CAPTURE AND ADVANTAGES:

  • DR - DIGITAL RADIOGRAPHY - 11/21

    DR - DIGITAL RADIOGRAPHY
    *NO CASSETTES ARE REQUIRED

    drdelworksf14gcrop
    DR - Digital Radiography has typically been found in large Private Practice, Orthopedic and Hospital settings... DR is usually the most expensive method of "going digital" but it also affords the highest quality image because the x-ray photons are directly producing the image. In the Digital Flat Plate Technology, there is no medium as in CR with cassettes or CCD technology with the conversion of light energy.

    The DR plate is a series of horizontal and vertical wires that compose a matrix to receive x-ray photons after they pass through the patient. The plate is mounted either in the wall or under the table (or both) to receive the image. During x-ray, the photons will penetrate through the patient and gather in the small squares or pixels. The number of photons in the square determines the darkness of the pixel on the image. The digital raidograph appears on the monitor in less that 6 seconds.

    The DR plates are expensive to make, and are frequently purchased as a single Image Receptor (in the table or wall holder). The Plate is usually tethered to a cord that is connected to the computer and must be moved from the table bucky to the wall bucky for upright imaging. Some have considered this the weakest link in Digital Flat Plate Technology. Today, manufactures are receiving FDA clearance for wireless transmission which will eliminate the cord.

  • CR - COMPUTED RADIOGRAPHY

    CR - COMPUTED RADIOGRAPHY
    *CR CASSETTES (LIKE FILM CASSETTES) ARE REQUIRED

    VitaCR
    CR - COMPUTED RADIOGRAPHY is very similar to the procedural method of film based radiography. The Image Receptor is a cassette with special Image Phosphors mounted inside. The cassette is positioned in the very same manner as conventional x-ray, either table top or table/wall bucky. During x-ray, the phosphors will capture x-ray photons that pass through the patient. The cassette with the phosphor plate (and recorded image) is then sent through the CR Reader. Inside the reader, a laser will energize the phosphors and they will release the photon energy. The energy emitted is captured by an analog digital converter (think scanner), and sent to the computer as a "digital radiograph".

    CR is the least expensive method "to go digital" and for some time has been the preferred method for private practice physicians. The system simply replaces the processor, darkroom, and all of the costly consumables that are needed with conventional radiography. But wait… DR - DIRECT DIGITAL RADIOGRAPHY is faster, better and cost are coming down!

  • ADVANTAGES

    CLEARLY THERE ARE MANY ADVANTAGES TO DIGITAL IMAGING

    The advent of digital imaging has created an overwhelming interest and many questions on the part of Practitioners. Just as with radiographic equipment, there are multiple choices in capturing digital images. For most, the ability to manipulate and share the image electronically along with elimination of the darkroom, processor, film, chemical and maintenance are on the top of the list of reasons to consider digital imaging. Digital imaging is quickly taking hold in the Medical, Chiropractic and Veterinary markets as costs have declined.

    patient_digitalradiography
    Digital radiology represents the greatest technological advancement in medical imaging over the last decade. The use of radiographic films in x ray imaging might become obsolete in a few years. An appropriate analogy that is easy to understand is the replacement of typical film cameras with digital cameras. Images can be immediately acquired, deleted, modified, and subsequently sent to a network of computers.

    The benefits from digital radiology are enormous. It can make a radiological facility or department film-less. The referring physician can view the requested image on a desktop, laptop, tablet or a smart phone and often report in just a few minutes after the examination was performed. The images are no longer held in a single location; but can be seen simultaneously by physicians who are miles apart. In addition, the patient can have the x ray images on a compact disk to take to another physician or hospital.

MOVING FROM CR TO DR

  • THE PRACTICAL PERSPECTIVE - 11/21

    MOVING FROM CR TO DR - THE NEXT DIGITAL STEP…

    crtodr-sm

    Before deciding to make the switch from CR to DR, it is important to understand what the differences between the technologies mean to you and your practice. Rather than taking pages and pages answering this question from a technical approach, let’s look at what it means practically.

  • READ MORE

    MOVING FROM CR TO DR - THE NEXT DIGITAL STEP…

    Before deciding to make the switch from CR to DR, it is important to understand what the differences between the technologies mean to you and your practice. Rather than taking pages and pages answering this question from a technical approach, let’s look at what it means practically.

    CR-DR-BIG

    The most valuable resource
    Let’s explore how DR can save your department one of its most precious assets: Time.

    If you currently are working with CR in your department, you have probably worn out a few pairs of shoes with the amount of steps you’ve taken between the bucky and the processor; and you’ve probably become better at shuffling cassettes than a blackjack dealer shuffling cards.

    This is where the first advantage of DR comes in. Rather than swapping cassettes between the bucky and the processor, the image transfers electronically and automatically to the workstation once the x-ray is taken. That’s right, you can just leave the cassette right where it is until the exam is done or you need to move the cassette for another view.

    Flexibility and portability
    The next advantage brings us to your portable x-ray unit. Traditionally, with both film and CR, you didn’t know what your x-ray looked like until you got back to your department. With DR, because your workstation goes with you, there is immediate knowledge on your positioning and technique.

    This is also helpful for those bedside interpretations by physicians, say, in the ICU when they are checking for placement of a line or intubation, the image is visible in seconds, as opposed to waiting for the film to be processed and sent to your PACS for them to see.

    Additionally, if a positioning change is needed, a small adjustment can be made and the image may be repeated, rather than the long walk of shame back to the patient’s room where the entire exam must begin again.

    Lowering radiation dose and achieving higher image quality
    Outside of the time savings to the department and the staff, there is also an arguably more important savings happening with DR when compared to CR, and that is radiation dose.

    Two mainstream DR panel technologies exist today, which are CsI (Cesium Iodide) and Gadox (Gadolinium Oxysulfide). Between the two, CsI requires less radiation to get an equivalent image when compared with Gadox. Depending on which type of DR panel, dose reduction can be as much as 2 to 3 times when compared to CR. Not only are CsI detectors capable of lower dose requirements, they also have the potential for the highest image quality, which will make reads faster and more accurate.

    While the CsI detector is a major part of this equation, the software of the vendor you choose has great influence on the final image, as well.

    The investment mindset
    So, is there any reason not to switch to DR? That comes down to really one thing: upfront cost.

    While cost is always a concern, it is important to consider upgrading to DR as an investment. As mentioned earlier, saved time can directly translate into money saved, usually due to the ability to perform a greater number of exams each day.

    There is also the cost of maintaining CR cassettes to consider. Because the processor disassembles and reassembles CR cassettes with each use, this results in inevitable--and not insignificant--wear and tear. Remember, the DR panel requires no manual processing.

    Avoid reimbursement reduction
    Finally, there is the upcoming Medicare reimbursement reduction slated to begin in this year for facilities that have not made the switch to DR.

    As part of an initiative to encourage U.S. healthcare providers to adopt DR, Medicare began reducing payments for analog x-ray exams in 2017. This year, even sites using CR will begin to see reimbursement fall—first by seven percent for five years, and then by ten percent.

    Changing from CR to DR is a decision every radiology department must consider, eventually, if they haven’t already. At a certain level, the question isn’t as much if, but when, and understanding the differences between CR and DR and even amongst differing DR systems is vital.
